Profine Red Small Filter – 3lt./min COD: CL-468542

Stop sediments like dirt and sand.
Profine® RED reduces and removes turbidity in water and suspended particles with 5 micron filtration. The quick-connect cartridge is disposable and made with extruded polypropylene technology. Cartridge compliant with DM 25/2012.

Removes dirt, rust, suspended matter not visible to the naked eye.

• Ideal for household appliances, technological systems such as pre-filtration for reverse osmosis and multiple Profine filter applications.
• Protects against blockages, corrosion and wear.
• Does not require electricity.
• Vertical or horizontal installation, it doesn't matter.
• The quick cartridge is easy to install and replace without the use of special tools.

Characteristics:
• Reduction of suspended particulate matter

• Technology: Extruded polypropylene (PP)
• Filter density: 5 microns
• Autonomy: Up to max clogging Dp 2.5 Bar (36.26 psi),
– Autonomy varies according to:
• the quality of the incoming water
• of the required capacity
• of the incoming water pressure
• filter use (continuous or intermittent)

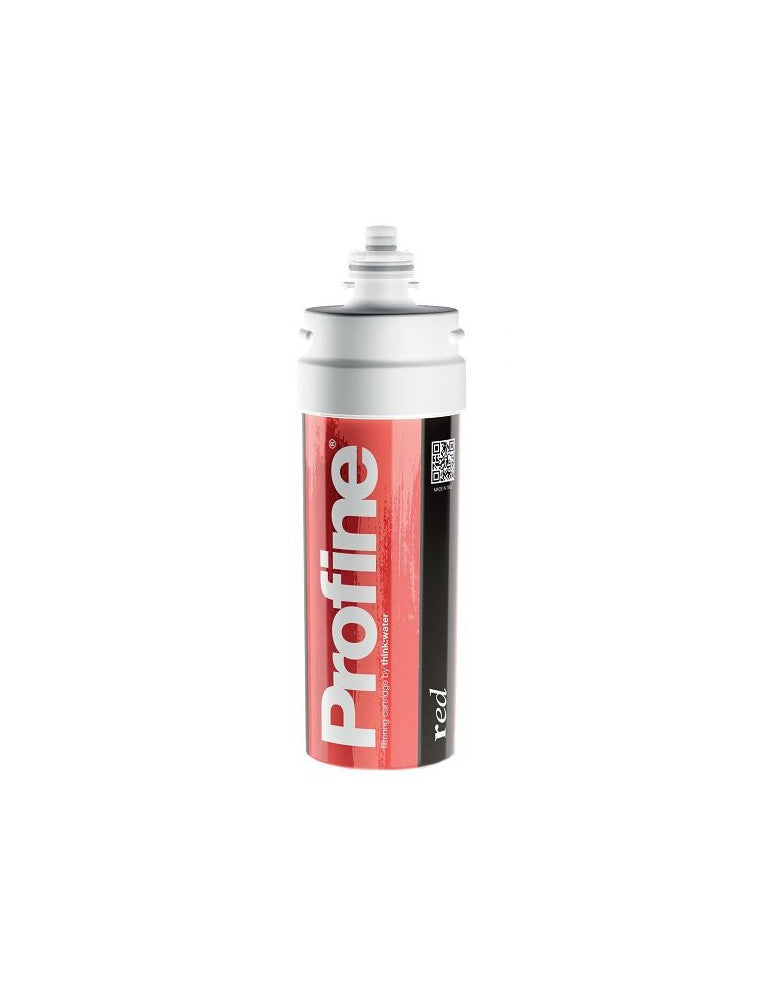

• Cartridge dimensions: HxD (mm.) SMALL 269×87.4(mm.) – 10.59”x3.44″(In.)

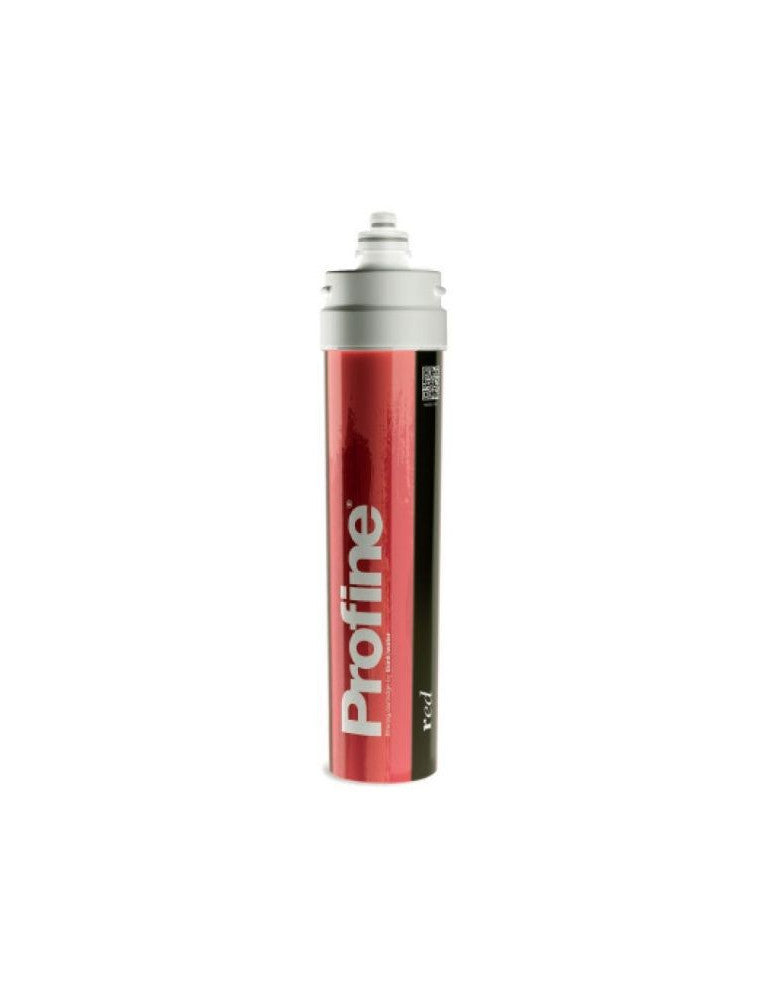

• Cartridge dimensions: HxD (mm.) MEDIUM 384×87.4(mm.) – 15.11”x3.44″(In.)

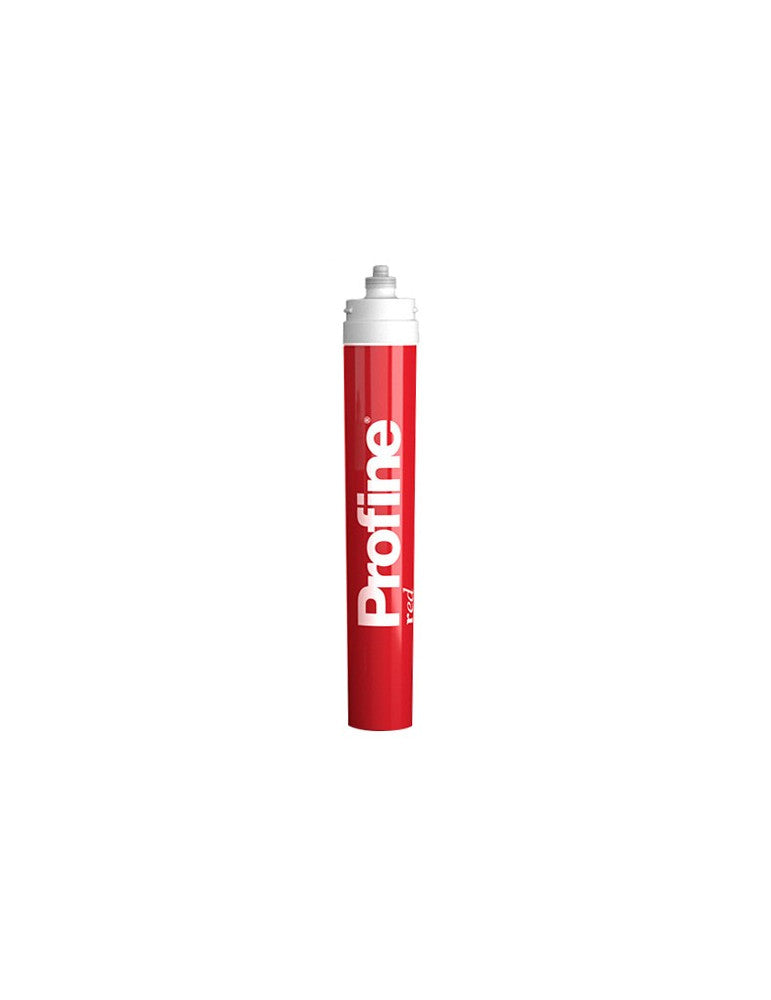

• Cartridge dimensions: HxD (mm.) LARGE 529×87.4(mm.) – 20.82”x3.44″(In.)
(Leave a vertical space of approximately 7 cm under the cartridge to allow for replacement.)
• Activation: it is advisable to let the water flow through the filter at maximum pressure and with maximum flow rate, for at least 5 minutes to allow the air present in the filter to be purged.
• Cartridge change: When capacity is reached, or when flow is too slow (falls below 0.7bar/10psi), every 6 months but at least annually.
