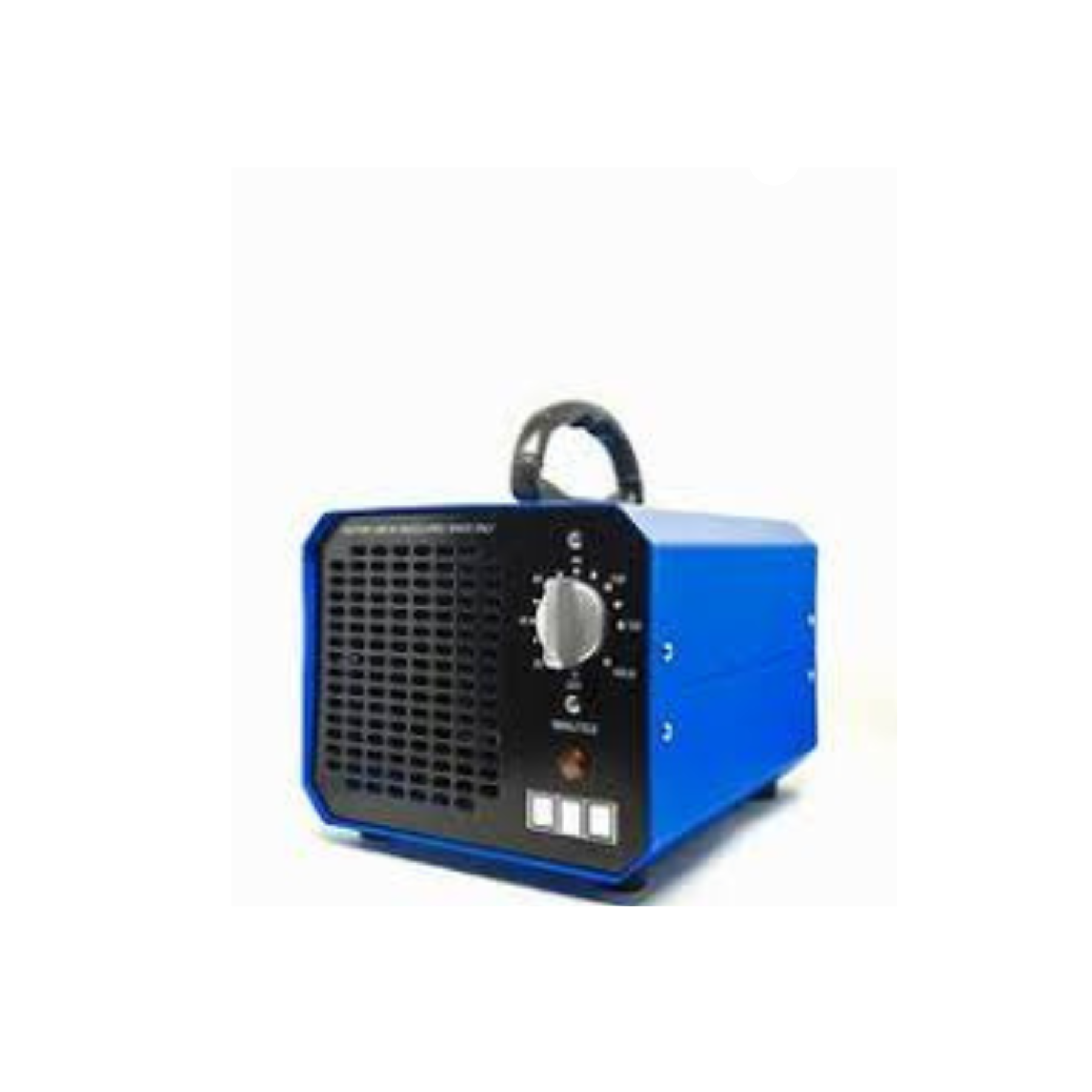

Ozone generator for air 10 Gr./H. COD: CL-13513601-10

Effectively removes smoke, pollen, dust, dust mites, mold, bacteria and viruses.

1. Sterilization: Effectively destroy a variety of bacteria and viruses.
2. Deodorization: Completely removes mold, cigarette smoke.
3. Increased Oxygen: Improves the oxygen level in the air.
4. Health: Purifies the air and promotes human metabolism.
5. Application areas: rooms, basements, vehicles and boats, hotels, smoking areas, garages, restaurants.

Characteristics
1. Compact and portable size.
2. Low energy consumption, minimal maintenance.
3. Silent operation.
4. No chemicals and no residual contamination.

Specifications
Voltage: 120V/60HZ. , 220V-240V. / 50-60H.
Power: 100W.
Ozone production: 10Gr./H.
Timer: 120 min timer + HOLD function.
HOLD function: The unit will work continuously.
Air flow: max 100 CFM (2.8 M3/min).
Noise: 35DB.
Air supply: ambient air.
Cooling method: air cooling.
Applicable area: 1000 square meters.
Dimensions: 230x180x170mm.

How it works
1. Connect the unit.
2. Rotate the timer and select the time you need to operate, when you set the timer less than 20 minutes, you need to rotate it beyond 20 minutes, then turn it back to the desired minutes.
3. The unit starts working when the indicator light turns on.
4. The unit will automatically turn off when the time is up and the indicator light will go off.

Ceramic ozone plate
Autonomy: 8,000 hours.
Size: 88x108x1mm.

Steps to replace the ozone plate
1. Unplug the unit.
2. Lift the top plate support slightly upwards until it disengages from the plate itself.
3. Push the holder slightly until the plate can be removed.
4. Slowly and carefully remove the old plate.
5. Gently and slowly install the new plate and re-engage with the top of the plate holder.

Maintenance
When the unit produces less and less ozone or no ozone at all, it is necessary to replace the old ozone plate. Normally, the plate should be replaced after working for 8000 hours.
