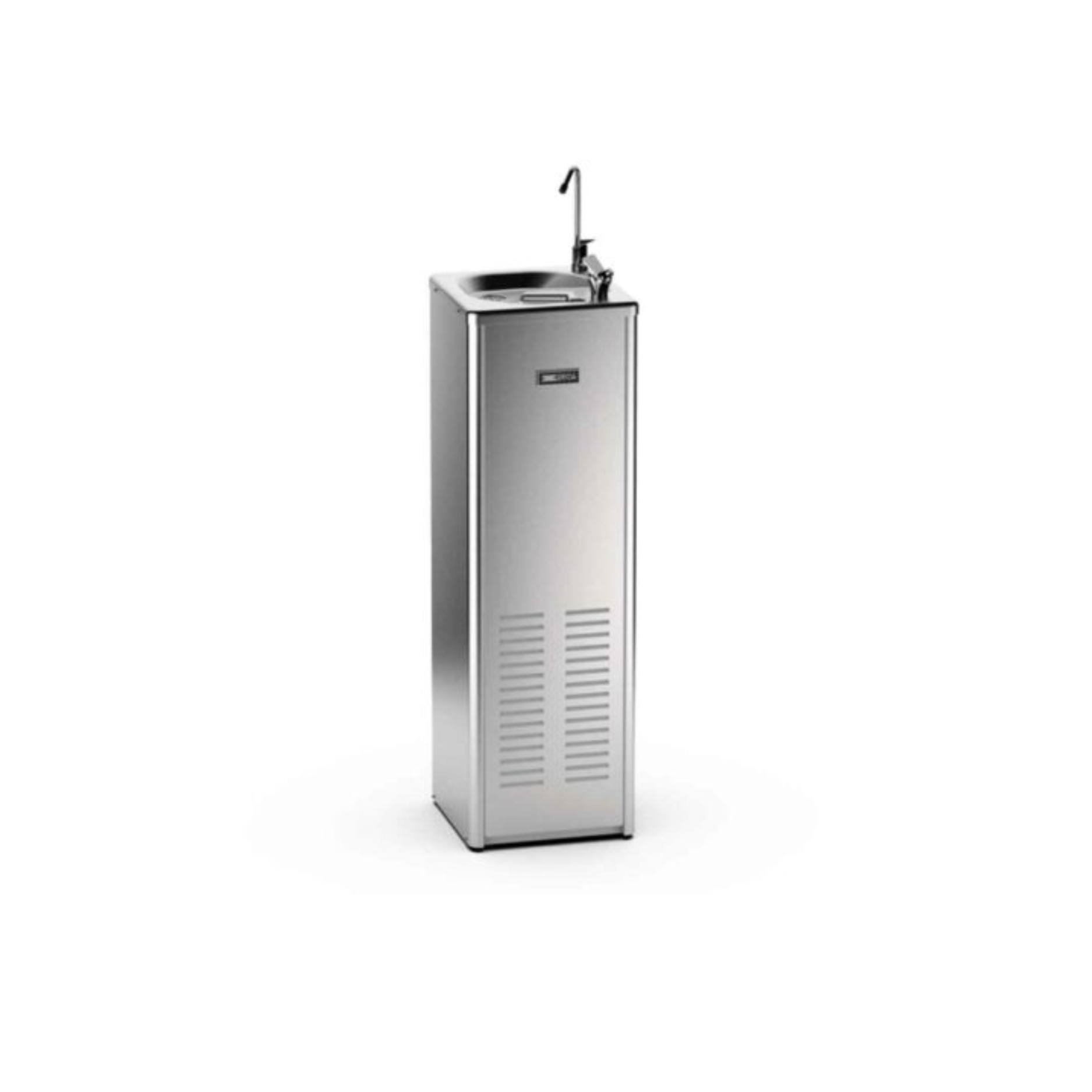

Plasticized Column Fountain Cooler with Microfiltration 2 Taps – 1 Way Still Water COD: CL-20030041-002

COMPLETE READY-TO-USE KIT

STILL WATER AT ROOM TEMPERATURE AND COLD

Cabinet in plasticized galvanized steel, for maximum resistance to atmospheric agents. Front compartment for the installation of optional filters for purification. The 260 model is the only one that, thanks to the exclusive HPDC® ZERICA system, delivers cold water in less than 3 minutes with a cooling capacity of 450Kcal/h, a delivery capacity of 60 l/h and an energy saving of 70%. The 260 HPDC® is the only model with a 30-year guarantee against corrosion of copper pipes. Equipped with SAHARA CLIMA ZERICA works with ambient temperatures up to 43 °C – 109 °F (mod. 260 HPDC®). New cooling chamber with silver particles with sanitizing and bactericidal properties (mod 80 and 260).

Connections
• Water inlet: 1/4″ female.
• Water inlet: 8mm. quick coupling.
• Water drain line: 20cm. Ø25mm pipe.
• Water filter not included in the product code. Accessories included in the system:

– Autonomy varies according to:

• the quality of the incoming water
• of the required capacity
• of the incoming water pressure
• filter use (continuous or intermittent)
• Flow rate: 1.9 l./min. (0.5 gpm)
• Temperature: 35 – 100°F (2 – 38°C)
• Pressure: 25 – 125 psi (1.72 – 8.62 bar), non-shock.
• Activation: it is advisable to let the water flow through the filter at maximum pressure and with maximum flow rate, for at least 5 minutes to allow the air present in the cartridge to be purged.
• Cartridge change: When capacity is reached, or when flow is too slow (falls below 0.7bar/10psi), every 6 months but at least annually.
